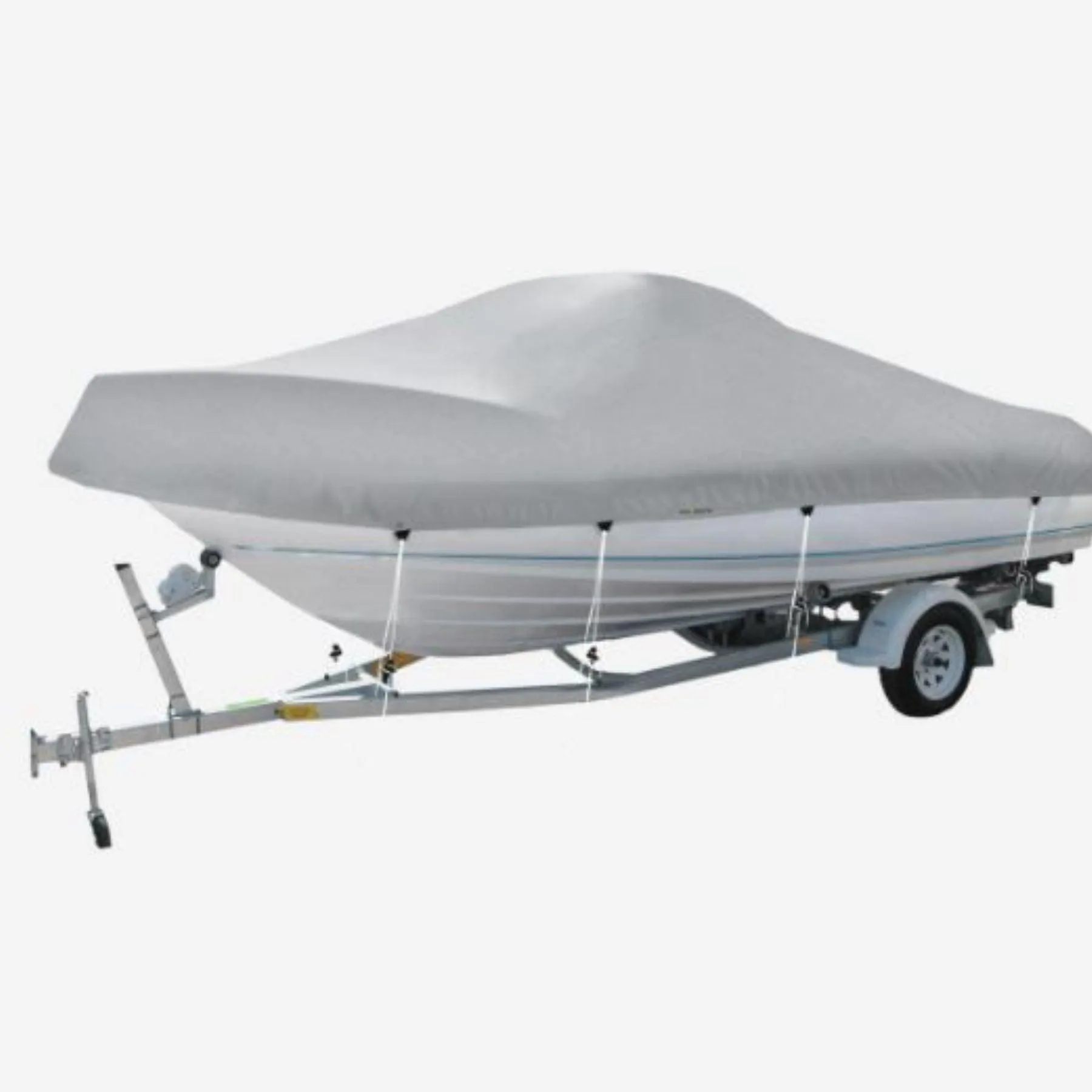

An excellent quality boat cover which will give your boat protection through the seasons.
Features

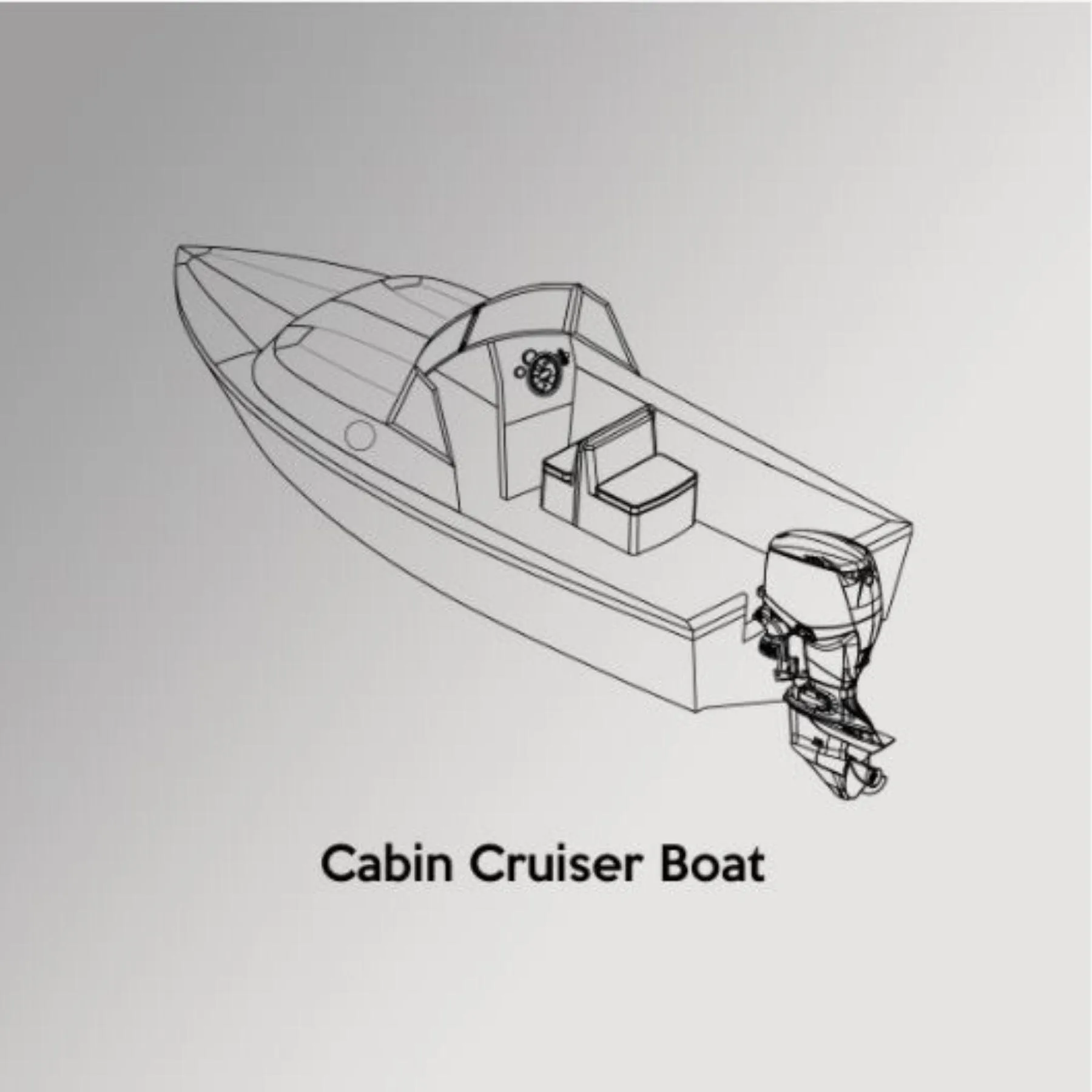

- Design to fit cabin type boats
- Ideal for trailering and long-term storage.
- Fits boats with bow rails up to 400mm height, and cabins up to 600mm height.

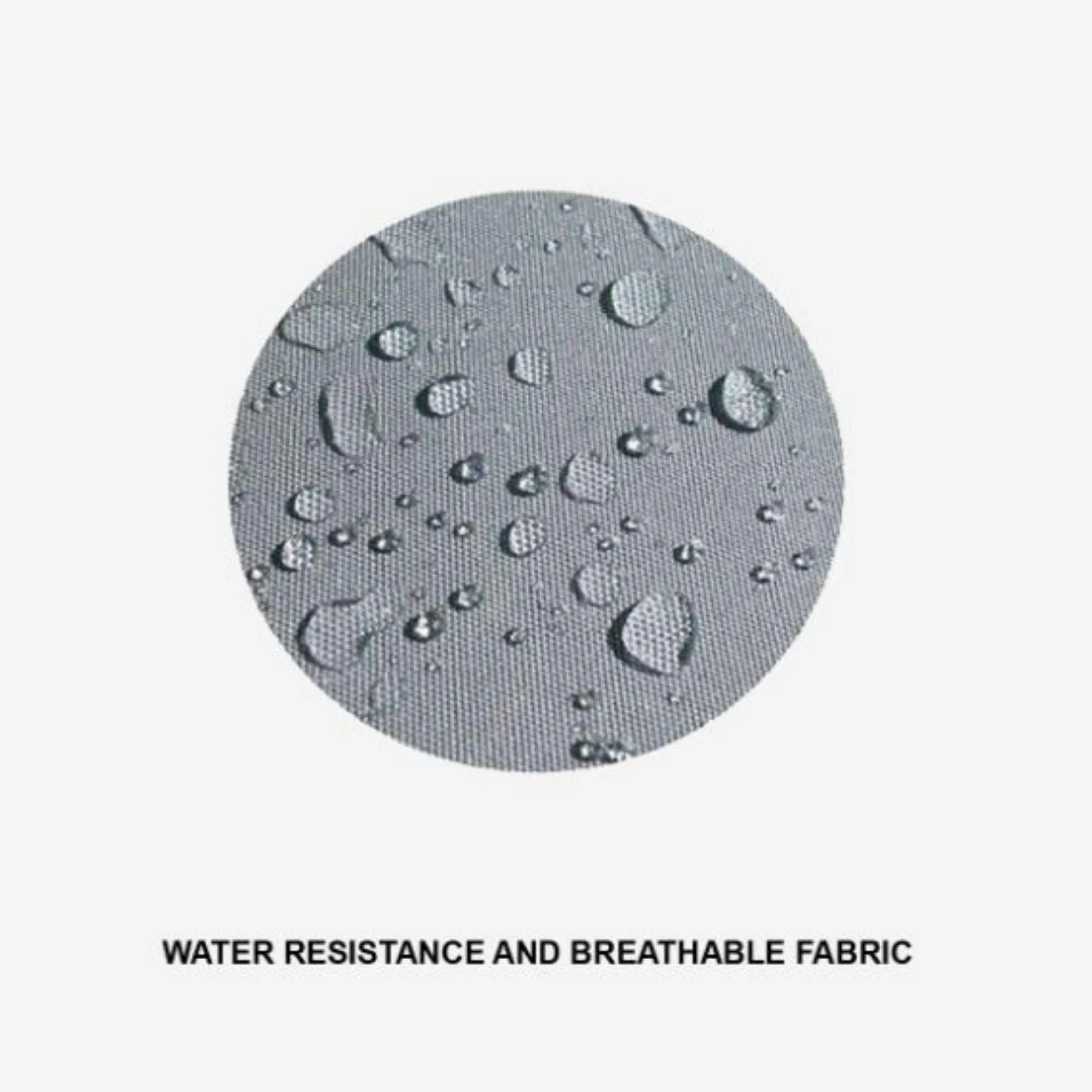

- The cover is constructed of the highest quality 280gsm Atlas marine fabrics.

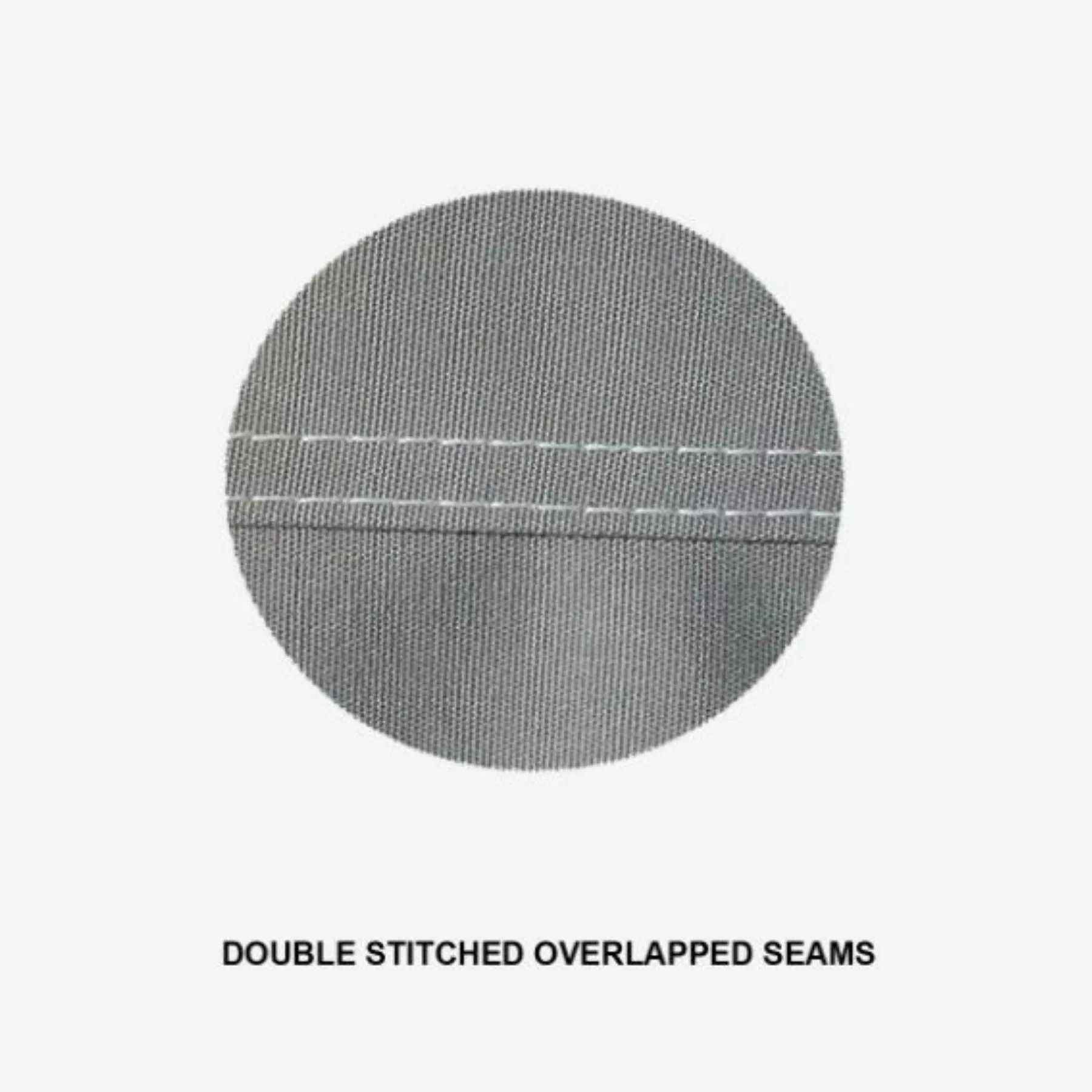

- Flat double lock seam stitching and highest quality UV threads ensure an extended life expectancy.

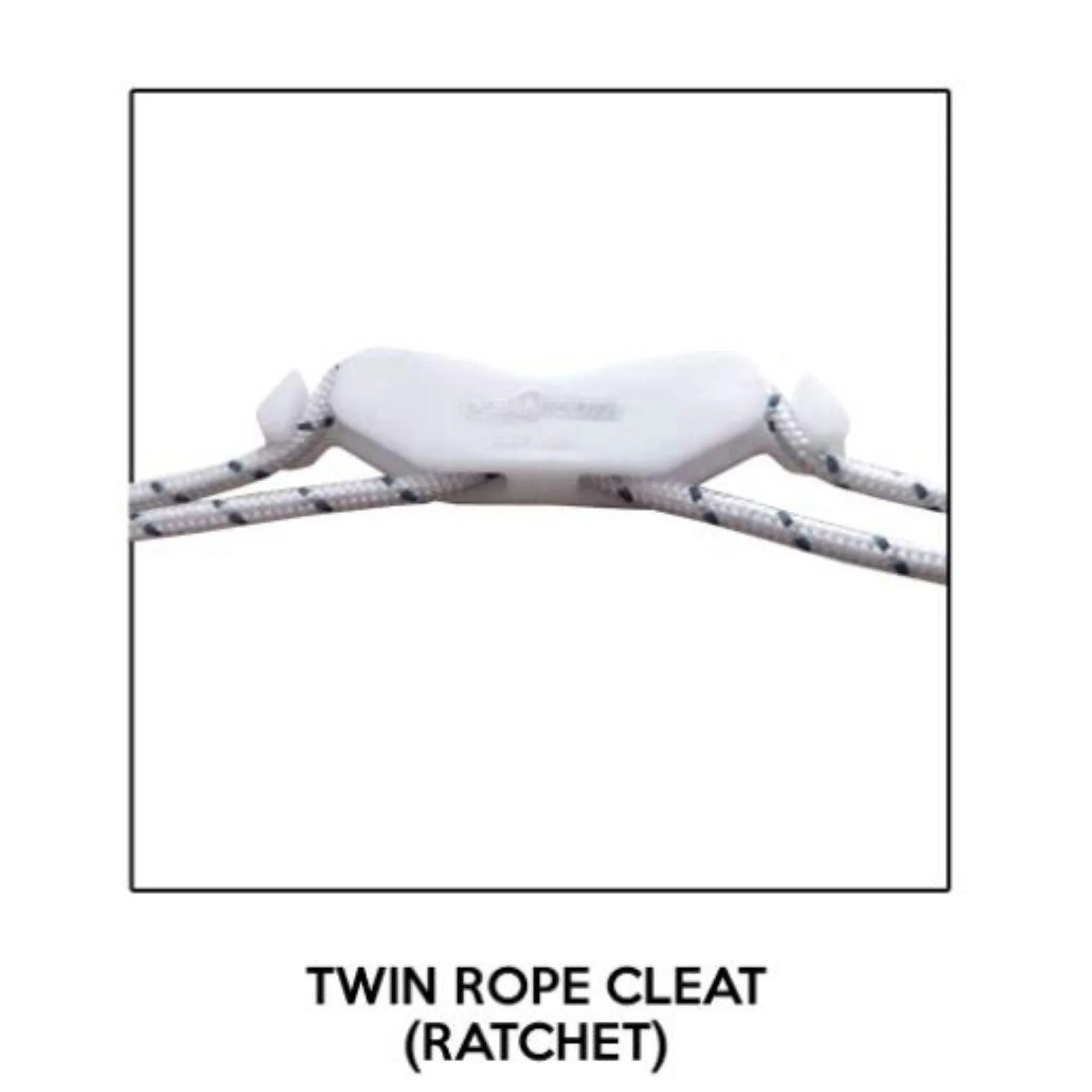

- 6mm breaded rope encased in hem, rope ratchet for easy gathering and tighten down the cover.

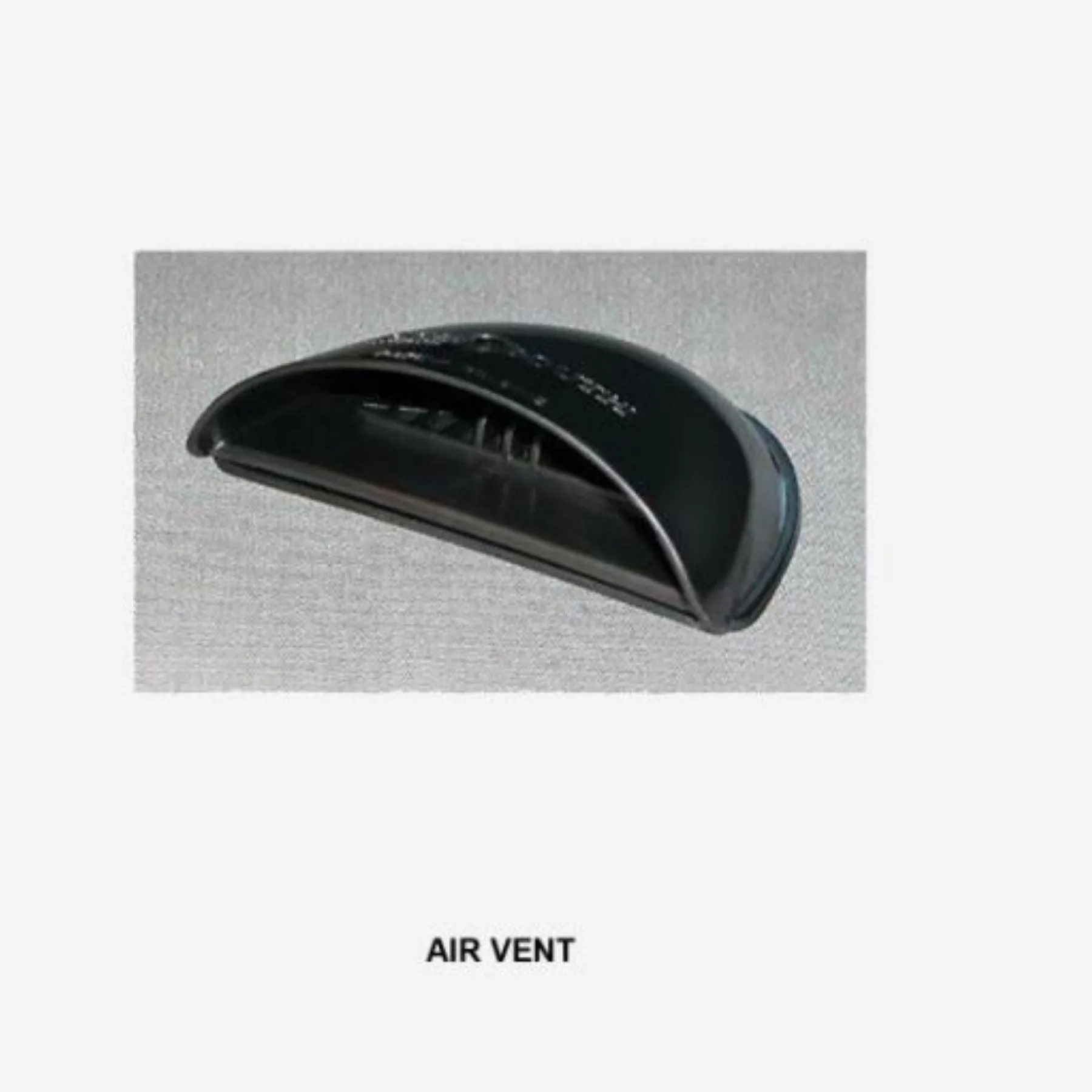

- Air vent provide air circulation.

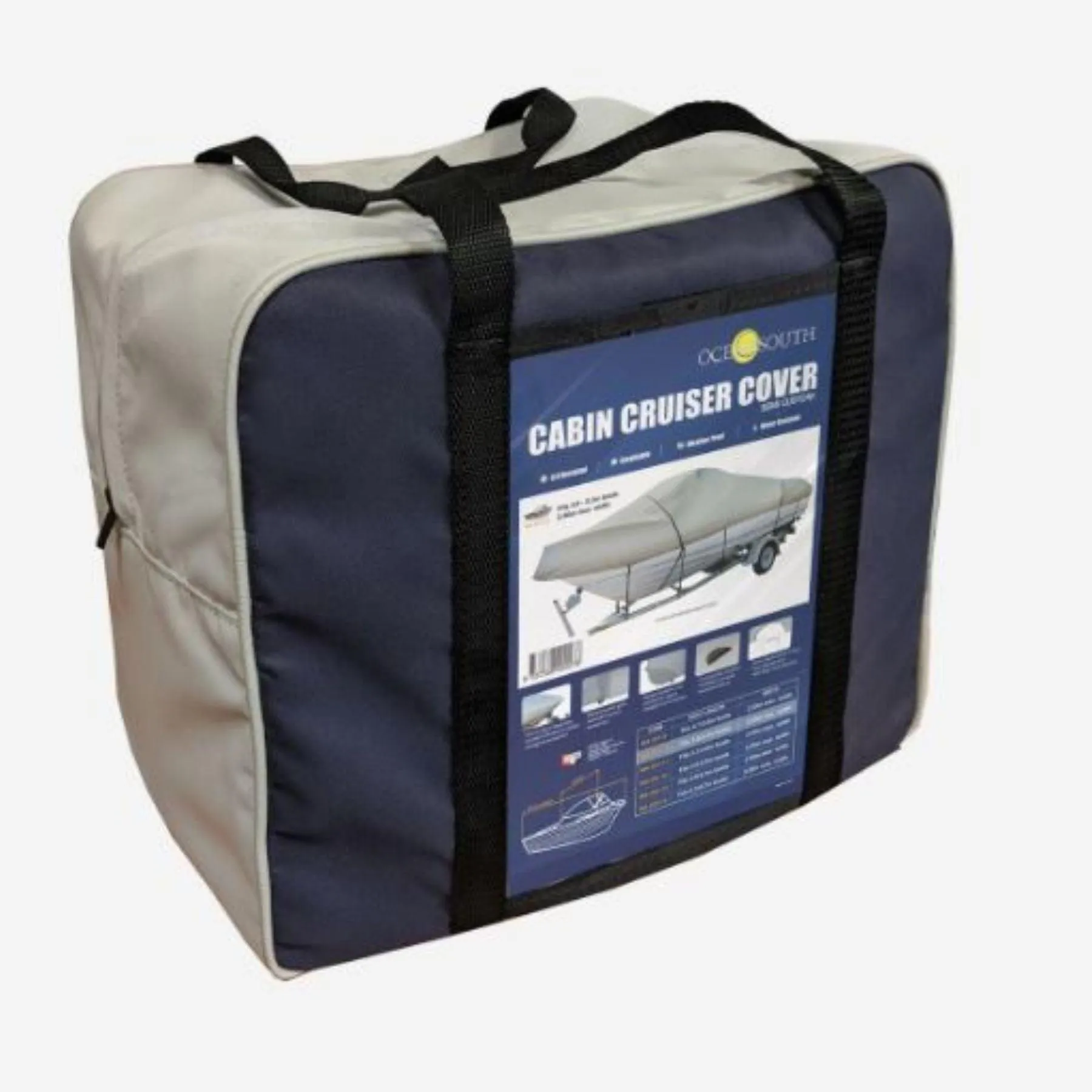

- Storage bag when not in used

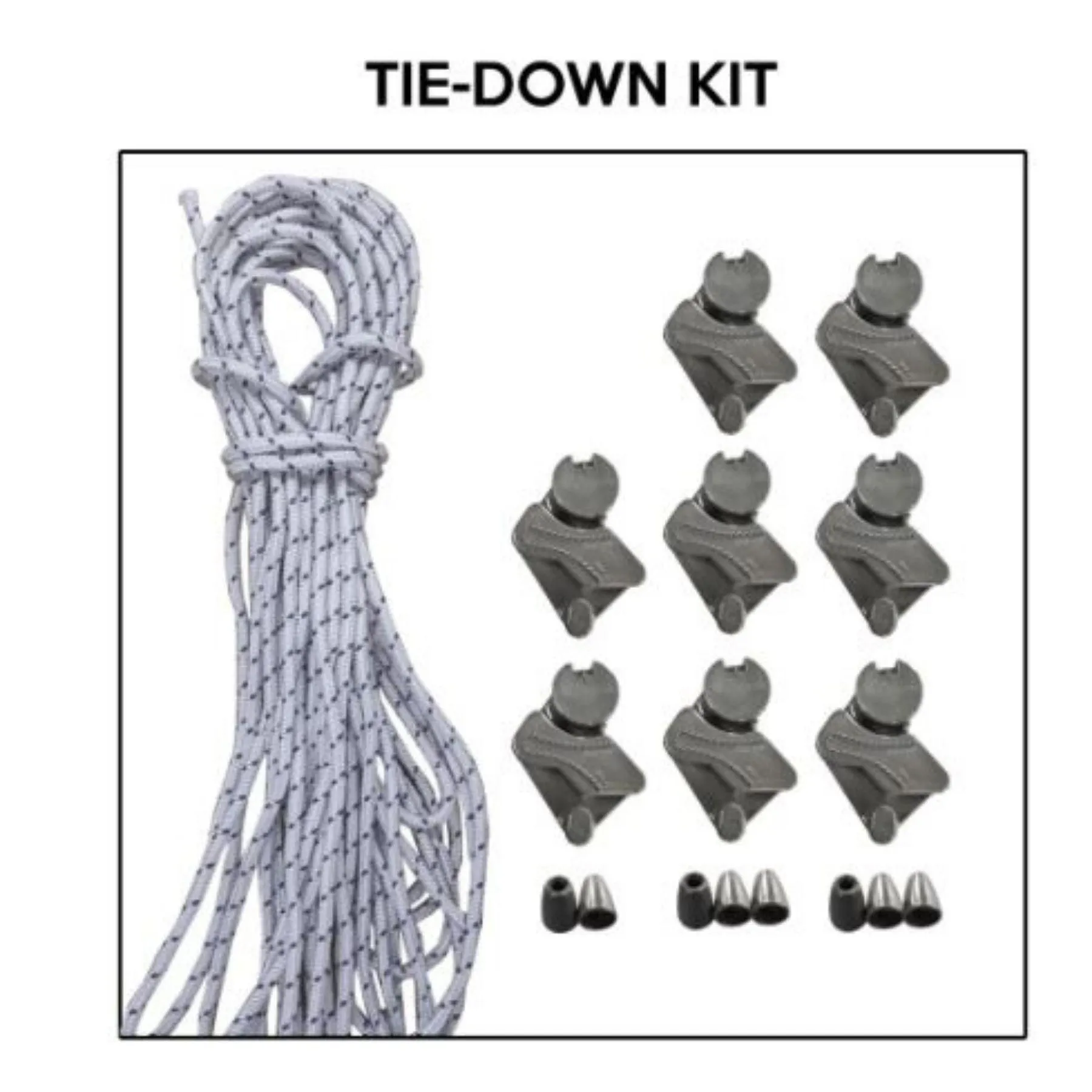

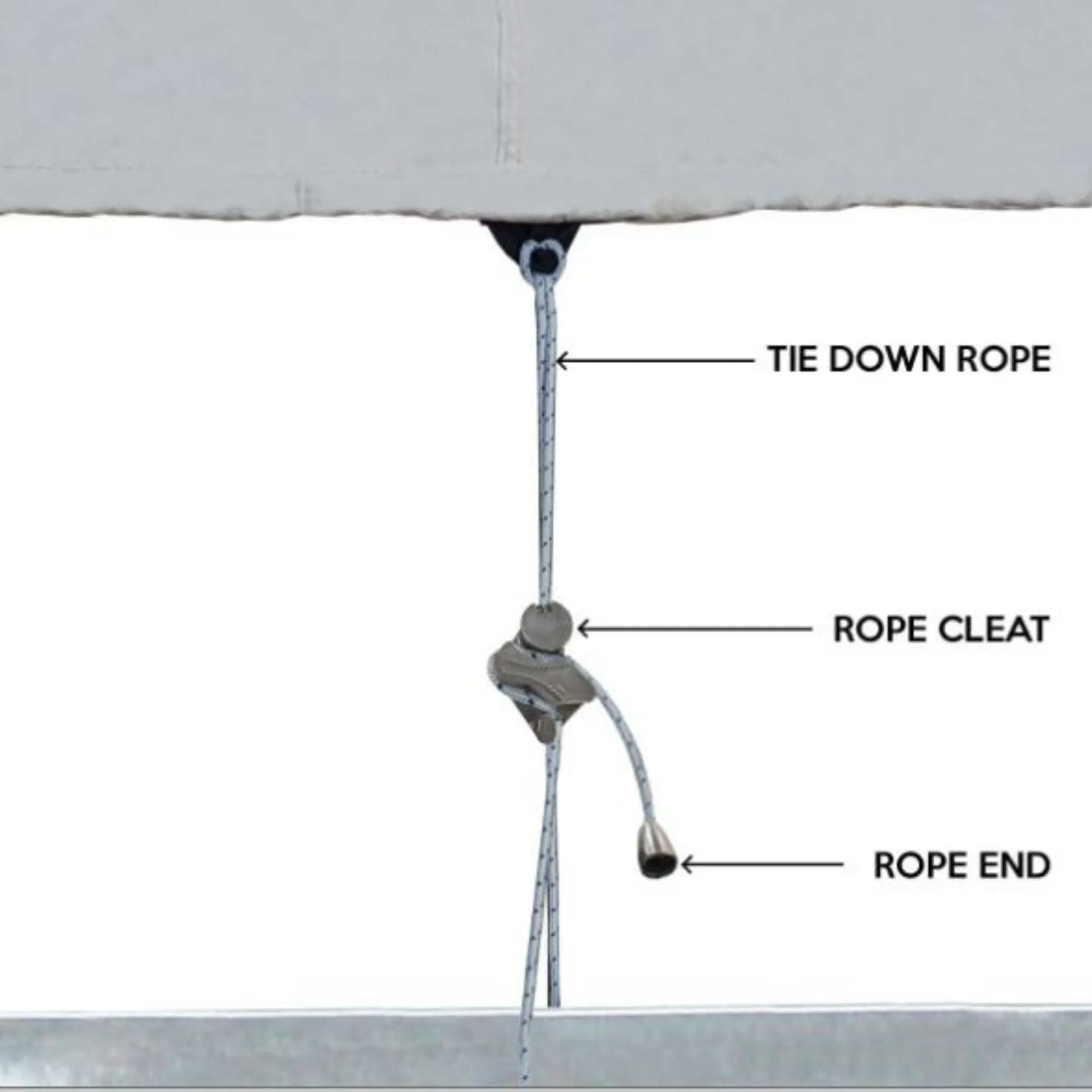

- A full set of Rope Ends, Rope Cleats and Tie-down Rope.
Measuring Instructions
1. Measure Boat Length
Measure in a straight line the centreline distance of your boat from Bow to Stern.
Measure in a straight line the distance across the beam (widest point of your boat)
3. Measure Height (from gunwale)
Measure a straight line from the gunwale to the highest point on your boat including boat fittings e.g.cabins, windscreens etc.
1. Measure Fabric Width
Using the ‘overall cover fabric width‘ measurement of your chosen cover, measure across the widest point of your boat, over the top of any boat fittings
e.g. cabin, windscreens etc.to the point on the hull where the cover’s hem will finish.
2. Measure Fabric Length
Using the ‘overall cover fabric length ‘ measurement of your chosen cover, measure along the length of your boat, over the top of any boat fittings e.g. cabin, windscreens etc. to the point on the hull where the cover’s hem will finish.
Specifications
| BOAT LENGTH | (W) FABRIC WIDTH | (L) FABRIC LENGTH | ORDER CODE |
|---|---|---|---|
| 4.7m – 5.0m | 3360mm | 5690mm | MA 201-9 |
| 5.0m – 5.3m | 3900mm | 6350mm | MA 201-10 |
| 5.3m – 5.6m | 3900mm | 6650mm | MA 201-11 |
| 5.6m – 5.9m | 3950mm | 6950mm | MA 201-12 |
| 5.9m – 6.3m | 4040mm | 7350mm | MA 201-13 |
| 6.3m – 6.7m | 4040mm | 7750mm | MA 201-14 |
| Weight | 280 g/m2 |
| Material | 100% High Tech Polyester |
| Water Column | ≥ 150 mbar (1500 mm) |
| Light & Weather Fastness | Note 6-7 |
| Tensile Strength | ≈ 2200 N¹ | 1400 N² |
| Elongation | ≈ 40 %¹ | 30 %² |
| Colour Fastness to rubbing | Note 4-5³ | Note 44 |
| Chlorine Resistant | Note 4-5 |
| Water Repellency | Note 100 |
| Oil Repellency | Note 4 |
| Coating | Polyurethan [PU] |
| UV Protection Factor | UPF 50 (measured value > UPF 80) |
